Modular Model
Modularity, high resistance and heavy load capacity.
Patented floor shelving system. Seven shelf sizes, height defined by levels and full-wrap decoration: the display adapts to the product, not the other way round. For temporary campaigns or permanent placements.
Specifications by model
Actual shelf dimensions of the 7 models in the system.
| Model | Shelf, outer | Shelf, inner | Shelf spacing | Shelf material | Tube material |
|---|---|---|---|---|---|
| 42 | 340 × 428 mm | 285 × 380 mm | As required | Injected polystyrene | Extruded polystyrene |
| 44 | 320 × 436 mm | 310 × 420 mm | As required | Injected polystyrene | Extruded polycarbonate |
| 52 | 435 × 520 mm | 376 × 460 mm | 250 / 300 / 350 / 400 mm | Injected polystyrene | Injected polycarbonate |
| 58 | 387 × 587 mm | 358 × 558 mm | As required | Injected polystyrene | Extruded polystyrene |
| 61 | 408 × 613 mm | 404 × 610 mm | 290 / 390 mm | Injected polystyrene | Injected polycarbonate |
| 66 | 410 × 660 mm | 375 × 630 mm | As required | Injected polystyrene | Extruded polystyrene |
| 75 | 680 × 750 mm | 675 × 745 mm | As required | Injected polystyrene | Extruded polystyrene |
- Shelf, outer
- 340 × 428 mm
- Shelf, inner
- 285 × 380 mm
- Shelf spacing
- As required
- Shelf material
- Injected polystyrene
- Tube material
- Extruded polystyrene
- Shelf, outer
- 320 × 436 mm
- Shelf, inner
- 310 × 420 mm
- Shelf spacing
- As required
- Shelf material
- Injected polystyrene
- Tube material
- Extruded polycarbonate
- Shelf, outer
- 435 × 520 mm
- Shelf, inner
- 376 × 460 mm
- Shelf spacing
- 250 / 300 / 350 / 400 mm
- Shelf material
- Injected polystyrene
- Tube material
- Injected polycarbonate
- Shelf, outer
- 387 × 587 mm
- Shelf, inner
- 358 × 558 mm
- Shelf spacing
- As required
- Shelf material
- Injected polystyrene
- Tube material
- Extruded polystyrene
- Shelf, outer
- 408 × 613 mm
- Shelf, inner
- 404 × 610 mm
- Shelf spacing
- 290 / 390 mm
- Shelf material
- Injected polystyrene
- Tube material
- Injected polycarbonate
- Shelf, outer
- 410 × 660 mm
- Shelf, inner
- 375 × 630 mm
- Shelf spacing
- As required
- Shelf material
- Injected polystyrene
- Tube material
- Extruded polystyrene
- Shelf, outer
- 680 × 750 mm
- Shelf, inner
- 675 × 745 mm
- Shelf spacing
- As required
- Shelf material
- Injected polystyrene
- Tube material
- Extruded polystyrene
Shelf colours to order; tubes clear or coloured. Model 42 accepts decorative paper inserts inside the tubes.
How it reaches the shelf

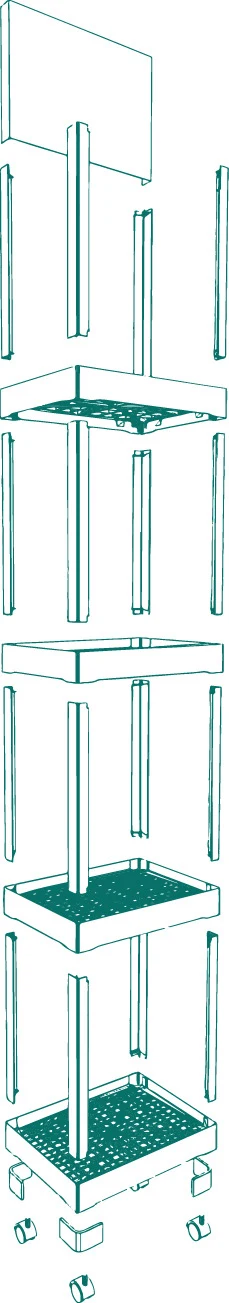

Modular system assembly — no tools, no screws.

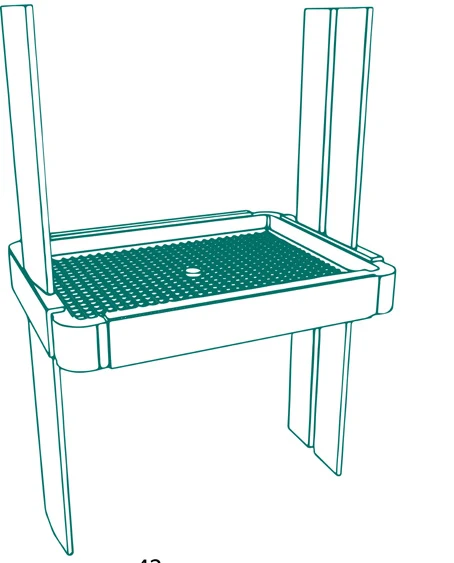

Structure
Shelves and tubes press-fitted together. No screws.
Load
Each level carries heavy product without losing stability.
Decorative body
Campaign graphics wrap the complete structure.
On the floor
360° visibility and easy restocking from both sides.
Built for the point of sale
Full-wrap decorative body
Campaign graphics wrap the whole display and are fitted or removed as easily as the structure is assembled.
Carries heavy products

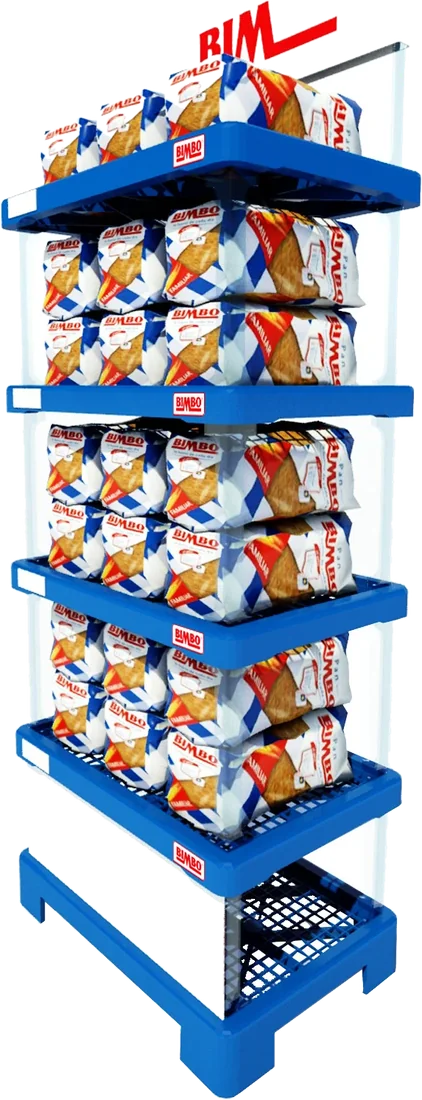

High-resistance injected polystyrene shelves with heavy load capacity per level.
Campaign accessories
Swivel castors, bottom storage, decorative side panels, header cards and price holders, as each placement requires.
Plinth and shelf stickers
Decorative plinth and shelf adhesives to complete the brand image at every reading height.

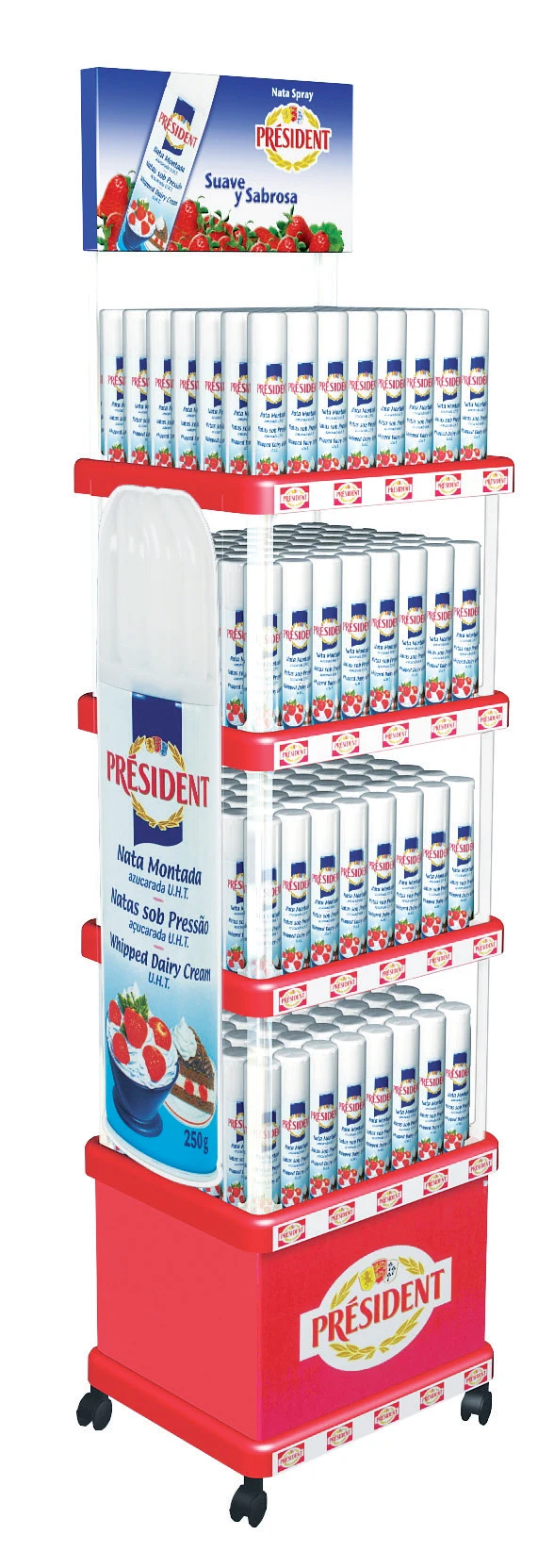

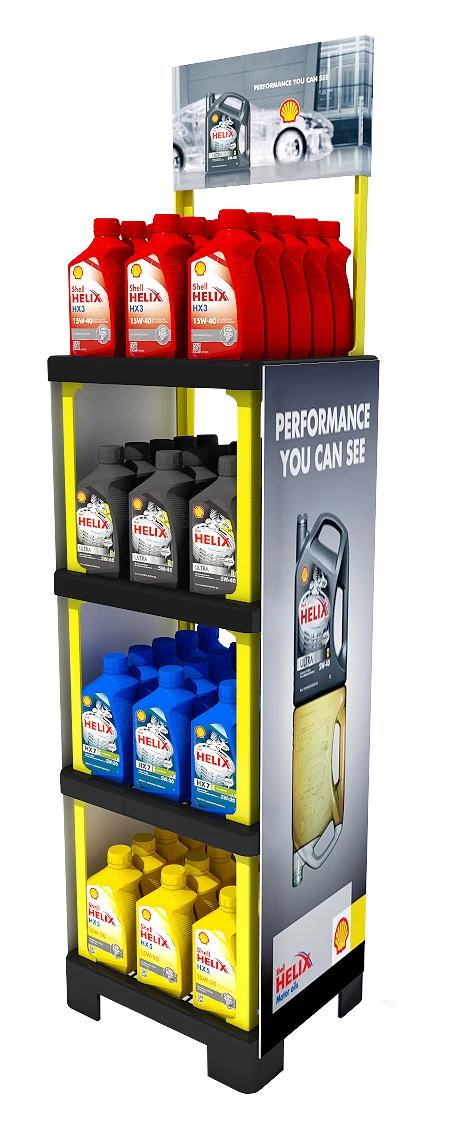

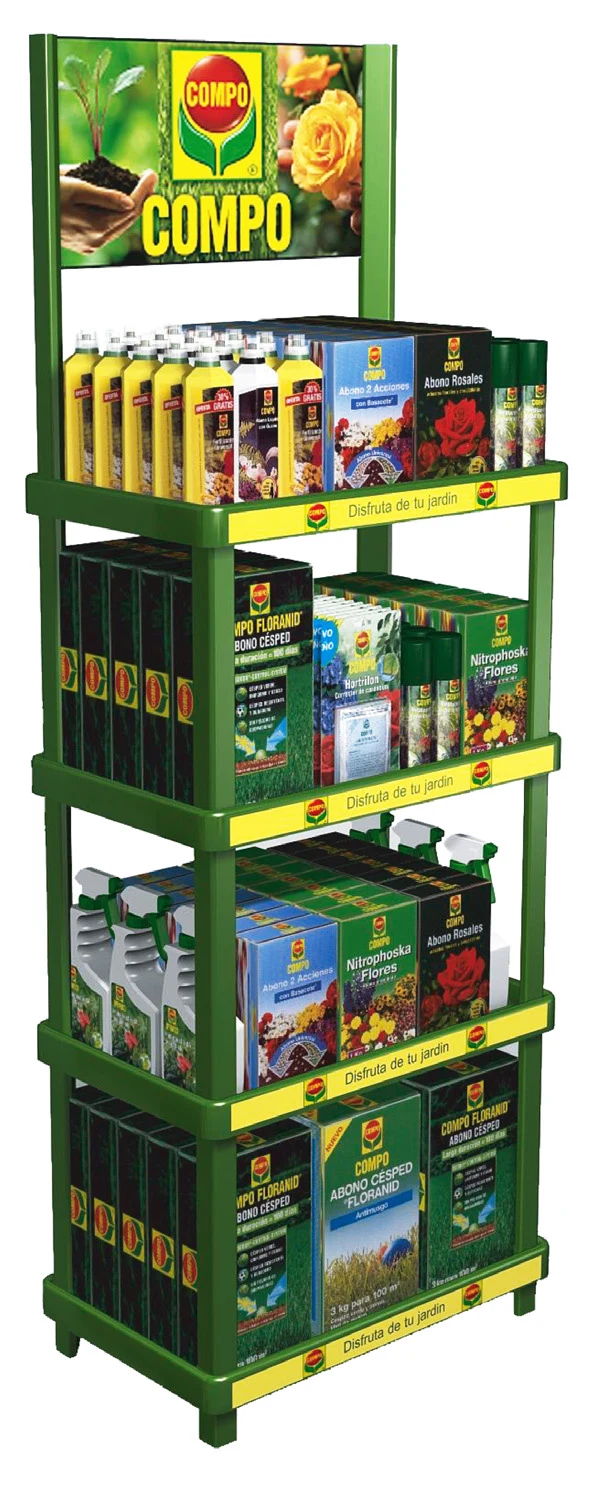

On the shelf for leading brands
Real placements of the Modular system.
Your product on a Modular?
Tell us sizes, weight and campaign: we propose a configuration and quote within 24h.
